GREENHOUSE TOP LIGHTING
High-Output LED Top Lighting for Commercial Greenhouses
GLPG NON-GL is a compact non-glass linear LED top light engineered for commercial tomato and cucumber production. It combines high photon efficacy, greenhouse-friendly installation, flexible optical distribution and reliable operation for modern greenhouse structures
01 — Overview
COMMERCIAL GREENHOUSE PLATFORM
Engineered for High-Output Greenhouse Lighting

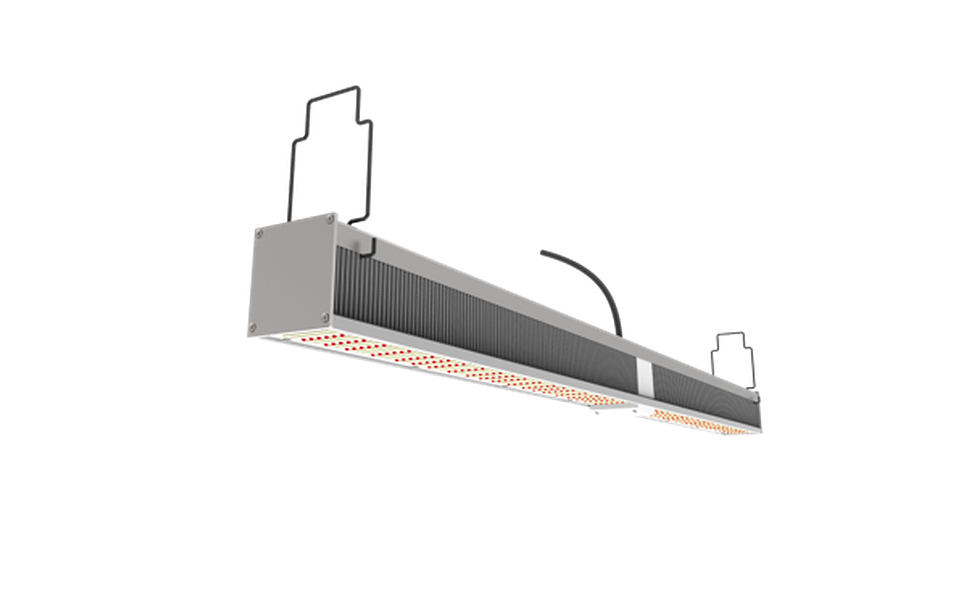

GLPG NON-GLASS is a linear LED top-lighting platform developed for professional greenhouse crop production.
Its compact non-glass construction, lightweight aluminum housing and greenhouse-oriented mounting concept are designed for efficient integration while minimizing structural shading.
Passive thermal management, protected electronics and optional sulfur-resistant configurations support reliable operation in demanding commercial greenhouse environments.
02 — Key Benefits
Product Architecture
Designed Around the Greenhouse Structure
01
Compact Non-Glass Architecture
Engineered for modern commercial greenhouse structures while minimizing structural shading.
03
Two-Point Mounting
Provides secure fixture attachment and long-term installation stability.
05
Condensation Protection
Anti-condensation protection and conformal-coated LED boards support operation in humidity-prone greenhouse environments.
07
Sealed Cable Entry
Provides additional protection against condensation and moisture ingress.
02
Integrated H-Profile Driver
Mounts directly on greenhouse C-profiles, simplifying installation, cable management and future maintenance.
04
Lightweight Aluminum Construction
Aerospace-grade aluminum minimizes greenhouse live load while maintaining structural rigidity.
06
Flipped Cooling-Fin Design
The cooling-fin architecture minimizes heat buildup for passive thermal management.
03 — Performance configurations
Performance Options
Select the GLPG NON-GLASS configuration according to project photon-output and efficiency requirements.
650 W
200–480 VAC
2216.5 BTU/h
PPF | PPE 100 | PPE 50 | Beam | IP | Dimming | Control |
|---|---|---|---|---|---|---|
2470 µmol/s | 3.8 µmol/J | 4.1 µmol/J | IP65 | 0-10 V | ||
2275 µmol/s | 3.5 µmol/J | 3.8 µmol/J | 120° / 140° | IP65 | 0-10 V | |
2080 µmol/s | 3.2 µmol/J | 3.5 µmol/J | 120° / 140° | IP65 | 0-10 V | |
1950 µmol/s | 3.0 µmol/J | 3.3 µmol/J | 120° / 140° | IP65 | 0-10 V |
Lighting control & integration
Fixture
HLP
Control System
Control architecture and HLP configuration can be adapted according to project requirements and the greenhouse automation system.
04 — Spectral options
Project-Specific Spectrum Selection
Spectral Options
Final spectral configuration should be selected according to crop, project and cultivation requirements.
oF660
oF367+
GLPG NON-GLASS is available with multiple spectral configurations to support different crops, growing stages and greenhouse lighting strategies.
oF670
oF360
oF367
05 — Photometric performance
GLPG NON-GLASS offers optical configurations designed to support different greenhouse layouts and lighting strategies.
PHOTOMETRIC DISTRIBUTION
Light Distribution
07 — Mechanical design
Mechanical Design
Fixture length options
1174 mm
Fixture width
72 mm
Fixture height
86 mm
Fixture weight
4.5 kg
Driver length
306 mm
Driver weight
2.5 kg
09 - System configuration
PROJECT CONFIGURATION

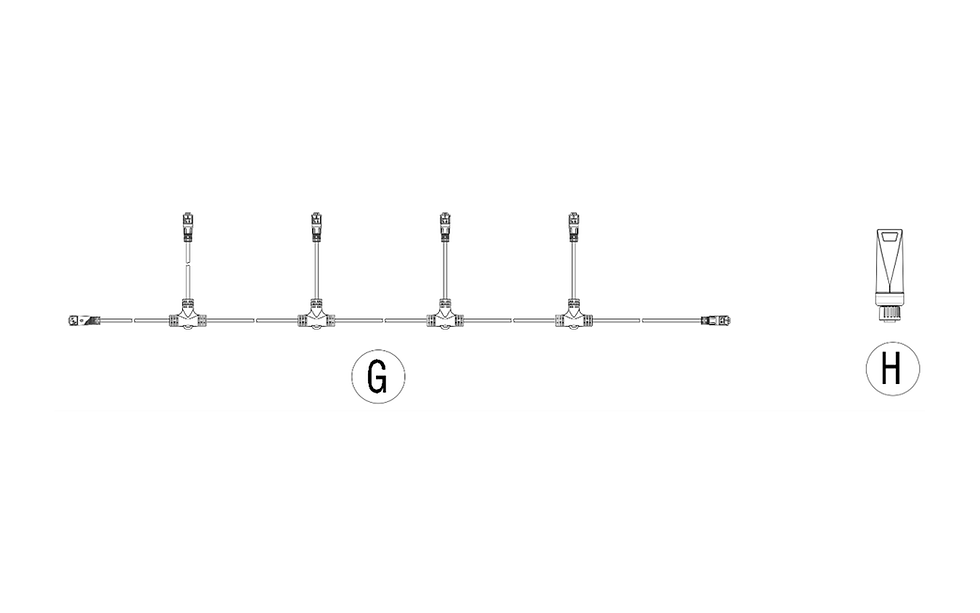

Accessories
Accessories
Fixture Integration
Mounting and installation components
Power & Connectivity
Project-specific power and connection options
Dimming and control integration options
Control Accessories
Optional Integration
Project-specific control, signal and mounting accessories available on request.
01
Extended Control Connectivity
02
Project-Specific Interface Options
GLPG Top Grow Light
Description
The GLPG top grow light is a precision-engineered linear top light designed for growers who demand peak performance without thermal compromise. The fixture offers up to 650W at 1.2 meter length, optimized for high-density greenhouse installations delivering intense, uniform light coverage from above.
Technical Features:
Dynamic & static spectrum
120°/140° light distribution
1.2m 650W with great heat dissipation
IP65 with silicone coating
